TK to M50D Tranmission Driveshaft Modifications? 86 Bronco II


Joined
Jul 27, 2023
Messages
3
Reaction score
0
Points
1
Vehicle Year
1986
Vehicle
Bronco II

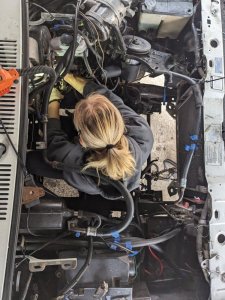

My daughter bought an cherry 86 Bronco II, but the motor leaked worse than the Valdez. My buddy donated his 91 Ranger truck. 2.9L V6 with the M50D transmission. She's been a total boss about the project, yanked two motors in two days, and turning into a motorhead. Couldn't be a more proud father.

The motor is all freshened up and we're getting ready to install. Need some help with the driveshaft mods required.

The front driveshaft out of the old TK slipped out of the transmission. The M50D had the U-joint yolk. Assumption is that we just remove the U-joint yolk and slip in the original Bronco II driveshaft???

Has anybody done this swap and point me in the right direction for the correct driveshafts for this swap?
